Power Amplifiers





V+ Series

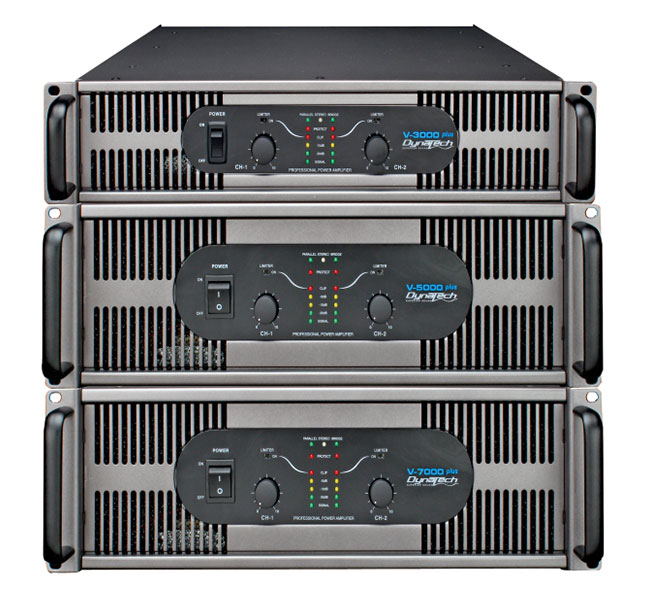

Dynatech V+ Series Power Amplifiers deliver from 500Watts to 6800 Watts of power in two to three rack spaces. High current transistors combined with low noise input amplifiers enable the V+ series to deliver exceptional power, Built around robust and advanced toroidal transformers, they deliver clean power on demand. The advanced protection circuitry guards against short circuit and open circuit, and also protects against ultrasonic and RF interference. A high current power supply increases reliability and performance. Other features include center-dented gain controls, input peak limiter, and fast recovery to ensure low distortion. The variable speed Fans effectively cool the amp and protect against overheating. Input is through XLR connectors, while you can use Speakon-type or binding post connectors for output. The V+ Series Power Amplifiers have Sub woofer outputs with a selectable low pass filter at variable frequency upto 200Hz. Dynatech V+ Series Power Amplifiers are specially designed for professionals who value high power, audio clarity, reliability and lasting performance.

  SPECIFICATIONS



  MODEL
  V-7000+
  V-5000+
  V-3000+
  RMS Output Power (Per Channel, 8Ω)
1400 W
1000 W
500 W
  RMS Output Power (Per Channel, 4Ω)
2000 W
1600 W
900 W
  RMS Output Power (Per Channel, 2Ω)
3000 W
2400 W
1500 W
  Rated Power (Bridge 8Ω)
4000 W
3200 W
1800 W
  Rated Power (Bridge 4Ω)
6000 W
4800 W
3000 W
  Input Sensitivity
0.775V, 1 V, 1.4V Selectable
  S/N Ratio (A Weight)
>105 dB
  Frequenct Response (+0/-0.25dB)
20 Hz to 20 kHz
  Class
H
H
AB
  Damping Factor
>1000 : 1
>1000 : 1
>800 : 1
  THD (10% Rated Power)
0.05%
  Input Connector
2 XLR
  Input Impedance
20 KΩ Balanced, 10 KΩ Unbalanced
  Output Connectors
Speakon + Binding Post
  Cooling
2 X Fan Airflow front to back
  Power Supply
230 V AC / 50 Hz
  Dimension WxDxH (mm)
133 X 483 X 498
132 X 483 X 465
88 X 483 X 410
  Net Weight (1 piece/pack)
34 Kgs
29.2 Kgs
24 Kgs
  Gross Weight
38 Kgs
34 Kgs
28 Kgs
