 High Performance Full Range Passive Systems





CX-15

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The CX-15 deliver extraordinary performance at unmatched value.

  SPECIFICATIONS FEATURES


  Rated Power   450W (RMS)
  Construction   15mm Multilayered Plywood
  LF Driver   1 X 15" Coaxial, 3" VC,
  Ferrite Magnet
  HF Driver   1 X Coaxial, 1.5" VC,
  Ferrite Magnet
  Crossover   2.1 kHz

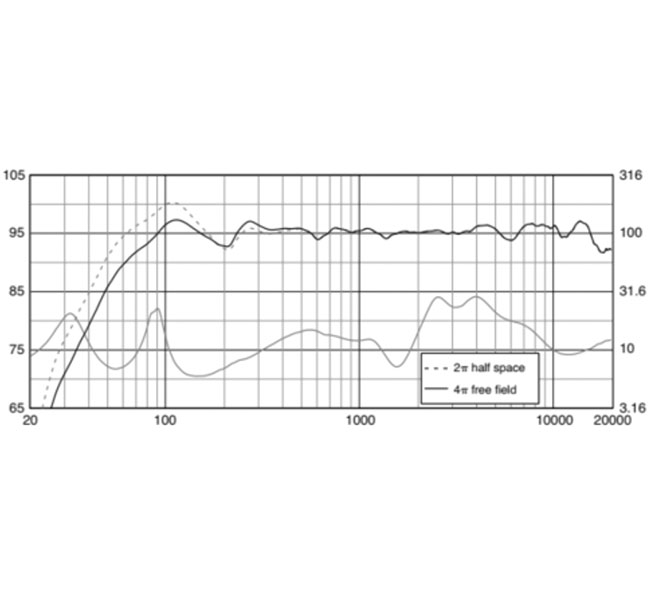

  Frequency Response (-3dB)   60Hz - 20kHz
  Maximum Peak Output   128 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   70° X 70°
  Connector   2 X NL4R Speakon
  Packaging Dimensions
  L X B X H (cms)		   50 X 46 X 84
  Net Weight   27 kgs
  Gross Weight   30 kgs
  High Output SPL & Sensitivity
  High Power Low Frequency Transducer
  Multi Purpose Cabinet Design
  Use as a Main System with or without Sub Speaker

APPLICATIONS
  Houses of Worship
  Rehearsal Halls
  Events
  Clubs
  Ballrooms
