High Performance Full Range Passive Systems


Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The DEL Series deliver extraordinary performance at unmatched value.

  Rated Power   700W (RMS)
  Construction   15mm Multilayered Plywood
  LF Driver   2 X 15", 3" VC,
  Ferrite Magnet
  HF Driver   1 X 1.4" Exit, 2.5" VC,
  Ferrite Magnet
  Crossover   2.2 kHz

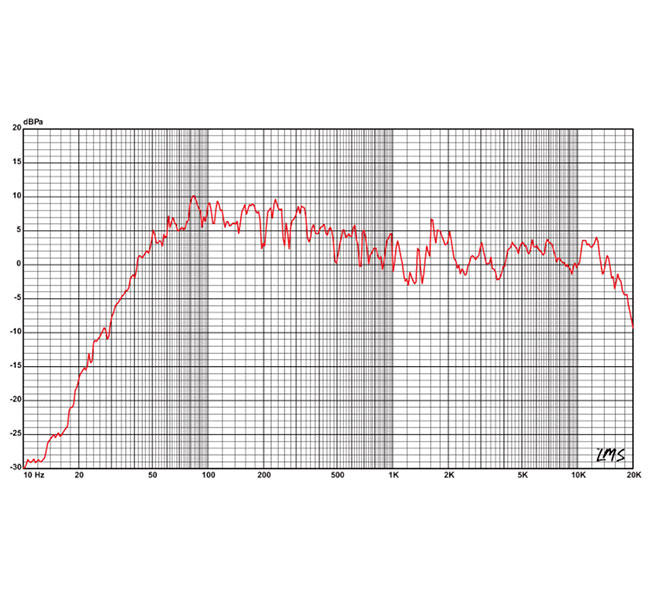

  Frequency Response (-3dB)   50Hz - 18kHz
  Maximum Peak Output   136 dB
  Rated Impedance   4Ω
  Dispersion (H X V)   90° X 50°
  Connector   2 X NL4R Speakon

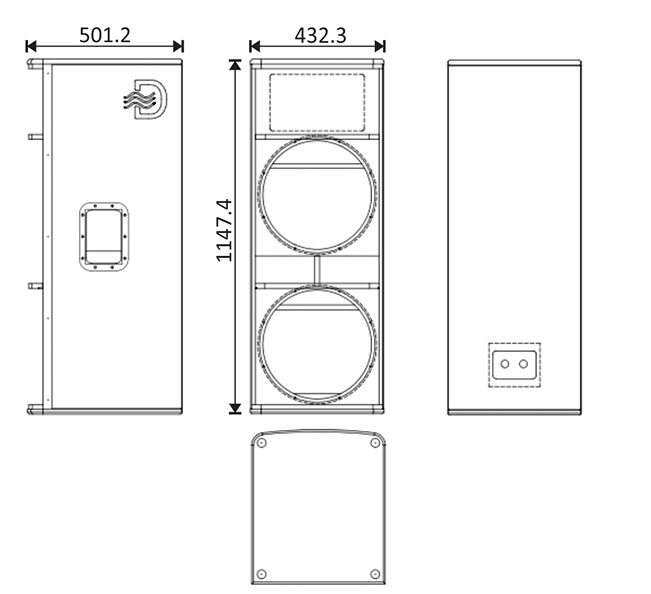

  Packaging Dimensions
  L X B X H (cms)
  59 X 52 X 127
  Net Weight   45 kgs
  Gross Weight   50 kgs
  High Output SPL & Sensitivity
  High Power Low Frequency Transducer
  Multi Purpose Cabinet Design
  Use as a Main System with or without Sub Speaker

  Houses of Worship
  Rehearsal Halls
