Power Amplifiers

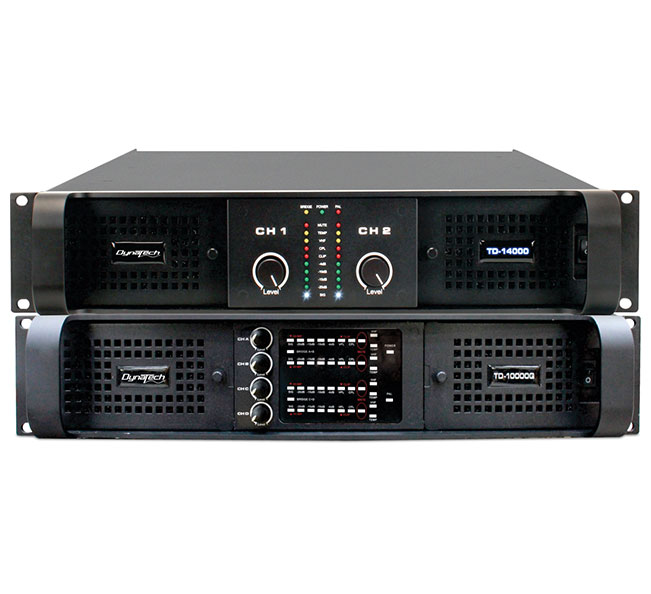

TD Series


Few currently available SMPS amplifier platform have achieved legendary status among the touring so quickly and unquestionably as our TD Series. The TD Series delivers superior sound quality, enduring severe stress, and keeping the show going on, no matter what.

In today's highly demanding touring environment, competitive sound hiring companies the world over have come to rely on Dynatech's TD Series Amplifiers for performance that leads to profitability.

  SPECIFICATIONS



  MODEL
TD-14000
TD-10000Q
  RMS Output Power (Per Channel, 8Ω)
2 X 2350 W
4 X 1250 W
  RMS Output Power (Per Channel, 4Ω)
2 X 4000 W
4 X 2100 W
  RMS Output Power (Per Channel, 2Ω)
2 X 7000 W
4 X 2200 W
  Rated Power (Bridge 8Ω)
1 X 8000 W
2 X 4200 W
  Rated Power (Bridge 4Ω)
1 X 1400 W
2 X 4600 W
  S/N Ratio (A Weight)
> 112 dB
> 112 dBA
  Frequenct Response (+0/-0.25dB)
2 Hz - 34.2 kHz
6.8 Hz - 34.2 kHz
  Class
D
D
  Damping Factor
>1000 : 1
  THD (10% Rated Power)
<0.05%
  Input Connector
1 X XLR in, 1 X XLR Line Out
  Input Impedance
20 KΩ Balanced, 10 KΩ Unbalanced
  Output Connectors
Binding Post
Speakon
  Cooling
Two fans, Front to rear airflow, temperature controlled speed
  Dimension WxDxH (mm)
483 X 443 X 88
483 X 443 X 88
  Net Weight (1 piece/pack)
13.5 Kgs
12.5 Kgs
  Gross Weight
16 Kgs
16 Kgs
