 High Performance Full Range Passive Systems





DEL-112

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The DEL Series deliver extraordinary performance at unmatched value.

  SPECIFICATIONS FEATURES


  Rated Power   350W (RMS)
  Construction   15mm Multilayered Plywood
  LF Driver   1 X 12", 2.5" VC,
  Ferrite Magnet
  HF Driver   1 X 1.4" Exit, 1.75" VC,
  Ferrite Magnet
  Crossover   2.6 kHz

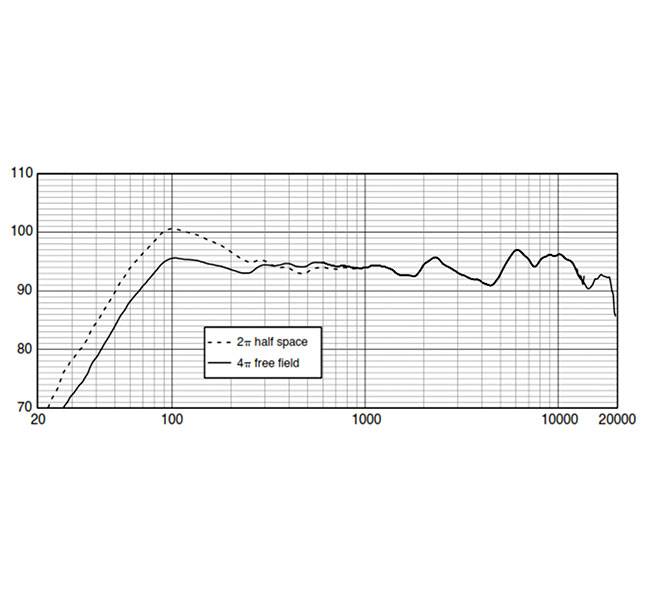

  Frequency Response (-3dB)   65Hz - 17kHz
  Maximum Peak Output   133 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   90° X 50°

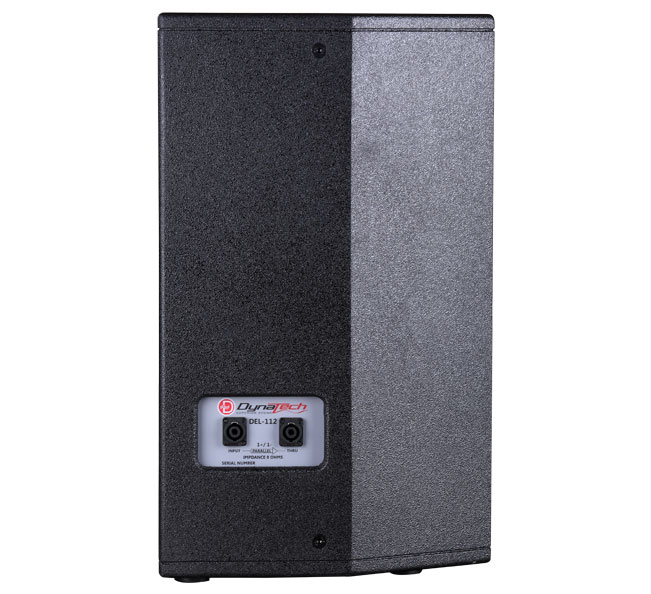

  Connector   2 X NL4 Speakon

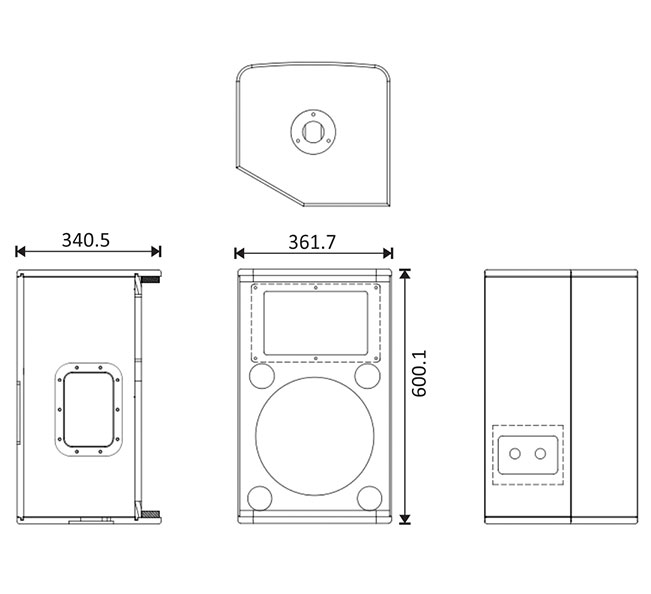

  Packaging Dimensions
  L X B X H (cms)		   42 X 40 X 67
  Net Weight   20 kgs
  Gross Weight   22 kgs
  High Output SPL & Sensitivity
  High Power Low Frequency Transducer
  Multi Purpose Cabinet Design
  Use as a Main System with or without Sub Speaker

APPLICATIONS
  Houses of Worship
  Rehearsal Halls
  Events
  Clubs
  Ballrooms
