 High Performance Full Range Passive Systems

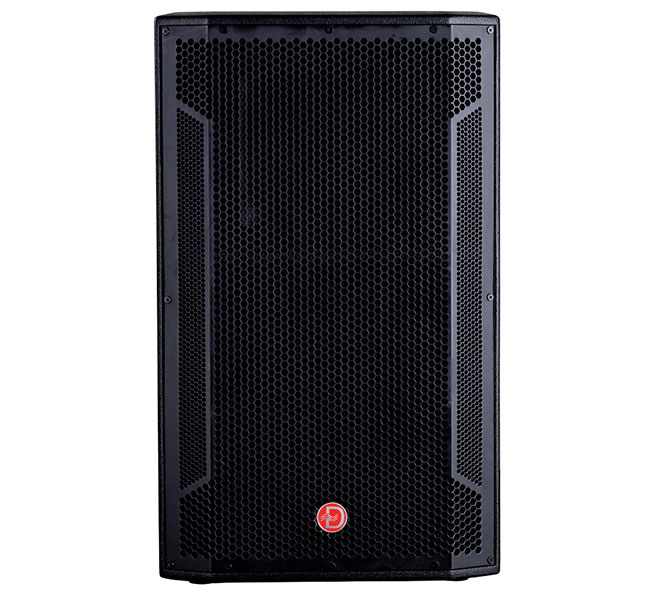

DVX-125

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The DVX series deliver extraordinary performance at unmatched value.

  SPECIFICATIONS FEATURES


  Rated Power   600W (RMS)
  Construction   18mm Multilayered Plywood
  LF Driver   1 X 15", 4" VC,
  Ferrite Magnet
  HF Driver   1 X 1.4" Exit, 3" VC,
  Ferrite Magnet
  Crossover   1.8 kHz

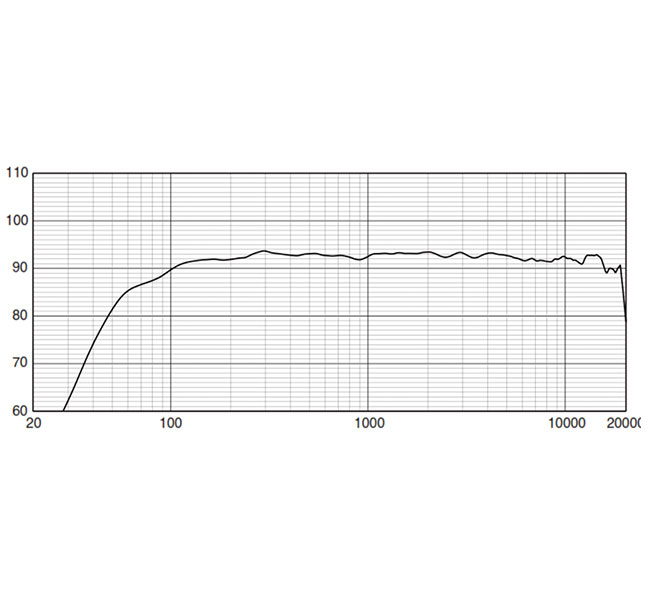

  Frequency Response (-3dB)   50Hz - 20kHz
  Maximum Peak Output   136 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   60° X 40°

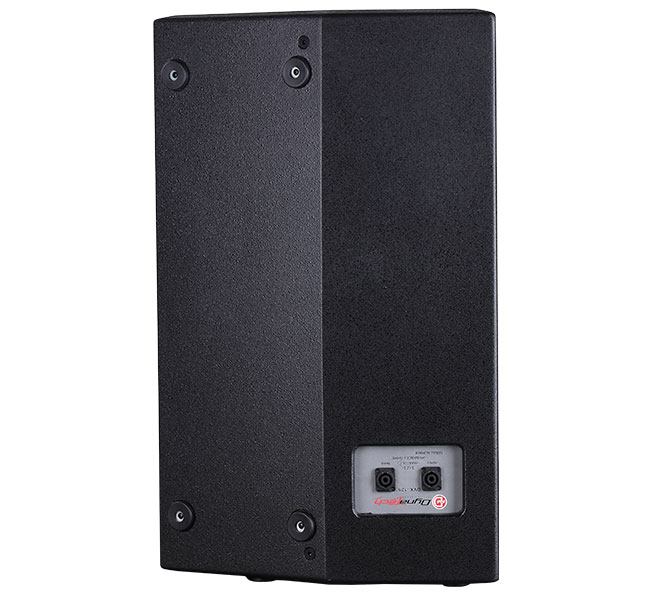

  Connector   2 X NL4R Speakon
  Packaging Dimensions
  L X B X H (cms)		   52 X 47 X 85
  Net Weight   30 kgs
  Gross Weight   32 kgs
  High Output SPL & Sensitivity
  High Power Low Frequency Transducer
  Multi Purpose Cabinet Design
  Use as a Main System with or without Sub Speaker

APPLICATIONS
  Houses of Worship
  Rehearsal Halls
  Events
  Clubs
  Ballrooms
