3 Channel Pro DJ Mixer
with Dual USB Pen Drive Input

 DDJ DJ Mixer Series

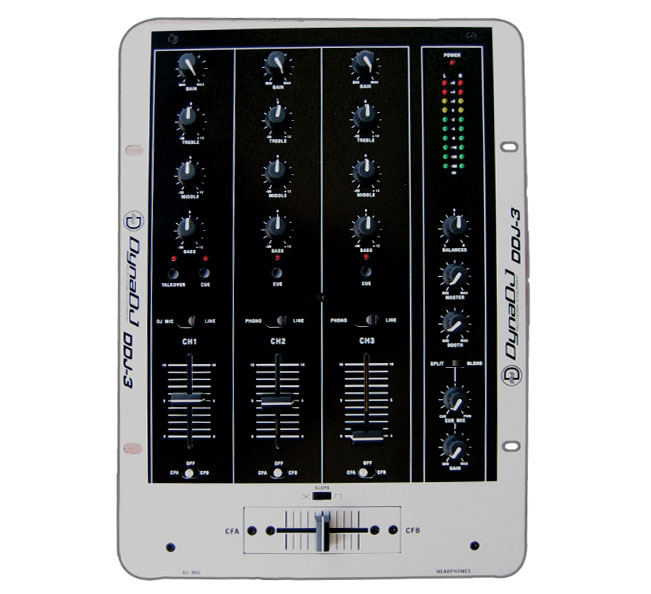

DDJ-3 & DDJ-3USB

The DDJ Series Comprise of 3-Channel Professional DJ mixers with multiple inputs (Line/Phono/Mic). The DDJ-3USB has 2 additional USB Pen Drive readers. Also features are talkover switch, cue button and headphone jacks for monitoring. The DDJ Series is a great mixer for beginners or veteran DJs.

  SPECIFICATIONS



  Modes
  DDJ-3 & DDJ-3USB
  Input
  2 Phono, 3 Line, 2 mic
  Output
  2 Master, 1 Booth via RCA
  Minimum Input Voltage
  Output = 1Vrms
  Phono
  0.85mV
  Line
  50mV
  Microphone
  0.4mV
  Line
  6.8Vrms
  Headphone
  0.3W
  Frequency Range
  +/-3dB
  Phono
  RIAA Standard +/-3dB
  Line
  20Hz-20kHz
  Microphone
  20Hz-18kHz
  Distortion
  0.01%
  S/N Ratio
  With JIS-A Weight
  Phono
  82dB
  Line
  97dB
  Microphone
  89dB
  Talkover Attenuation   -16dB
  Headphones Impedance   33 Ohm
  Tone Control   -
  Treble (dB)   +10/-30
  Middle (dB)   +10/-30
  Bass (dB)   +10/-30
  eala (3D Surround)   -
  Bass Effect   -
  Dimension W X D X H (mm)   254 X 355 X 99
  Weight   4.5 Kgs
  Gross Weight   5 Kgs
