SPECIFICATIONS |
FEATURES |
| |
|
|
| |
| Rated Power |
350W (RMS) |
| Construction |
Multilayered Plywood |
| LF Driver |
12", 2.5" VC,
Ferrite Magnet |
| LF Driver |
1” Exit, 1.75”VC,
Ferrite Magnet |
| Crossover |
2 kHz Digital
with EQ Presets |

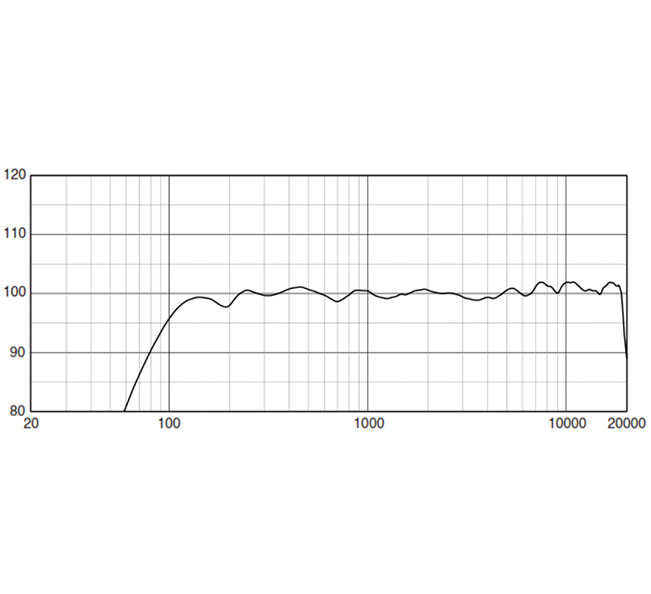

| Frequency Response (-3dB) |
50Hz - 18kHz |
| Maximum Peak Output |
129 dB |
| Dispersion (H X V) |
80° X 60° |
| Connector |
1 X XLR,;
1 X Combo TS XLR |
Packaging Dimensions
L X B X H (cms) |
45 X 47 X 69 |
| Net Weight |
28 kgs |
| Gross Weight |
31 kgs |
|
| High Output SPL & Sensitivity |
| High Power Transducer |
| Built in Bi-amp power amplifier module |
| XLR Input and Output Connectors |
| Portable system (stand) or permanent installation (wall, ceiling) |
|
| |
| APPLICATIONS |
|
| Houses of Worship |
| Rehearsal Halls |
| Events |
| Clubs |
| Ballrooms |
|
| |
|
| |
|
| |
|
|
|
