Line Array Systems


The medium to large sized line array loudspeakers are used in applications including sound reinforcement for houses of Worship, Events, Indoor Stadiums, Theme Parks, Multi-Functional Auditoriums, Schools and Transit Terminals etc. Excellent for live, rental and portable sound reinforcement applications. The DVX Series Line Array loudspeakers deliver extraordinary performance where high speech intelligibility and natural sounding music is required at unmatched value.

  Rated Power   1200W
  Construction   18mm Multilayered Plywood
  LF Driver   2 X 12", 3" VC,
  Ferrite Magnet
  HF Driver   1 X 1.4" Exit, 3" VC,
  Ferrite Magnet
  Crossover   Bi-amped Switchable to
  1.8kHz Passive

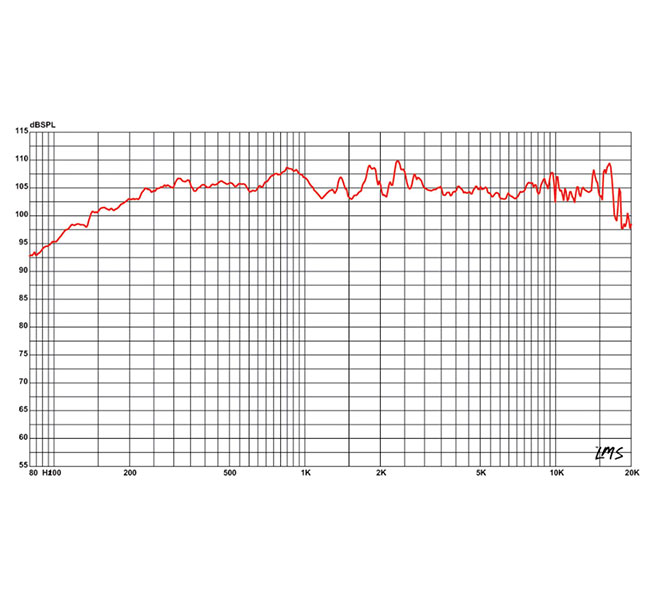

  Frequency Response (-3dB)   50Hz - 18kHz
  Maximum Peak Output   136 dB
  Rated Impedance   8Ω
  Dispersion (H X V)   120° X 15°
  Connector   2 X NL4R Speakon

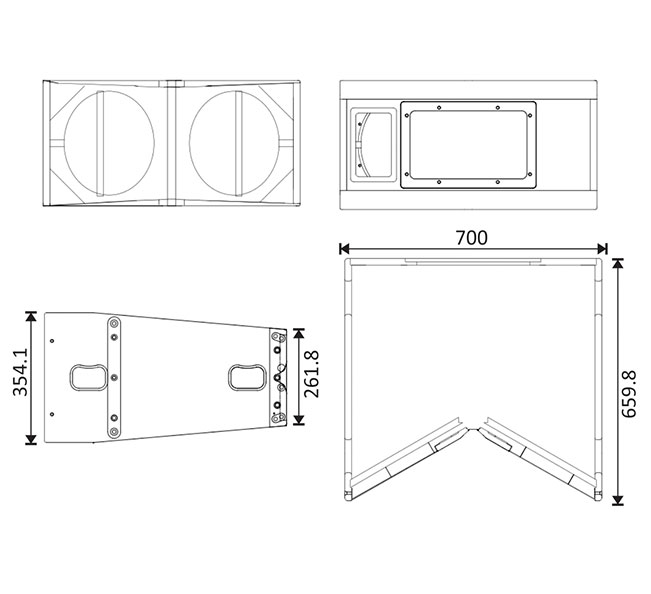

  Packaging Dimensions
  L X B X H (cms)
  80 X 73 X 86 (2 pcs.)
  Net Weight   43 kgs
  Gross Weight   140 kgs (2 pcs)
  Biamped/ Passive System
  Large Scale, 2-way Line Array System
  Multiple Source Emulation
  Very High Output SPL & Sensitivity
   2 X NL4R Connector

  Houses of Worship
  Rehearsal Halls
