 High Performance Full Range Passive Systems

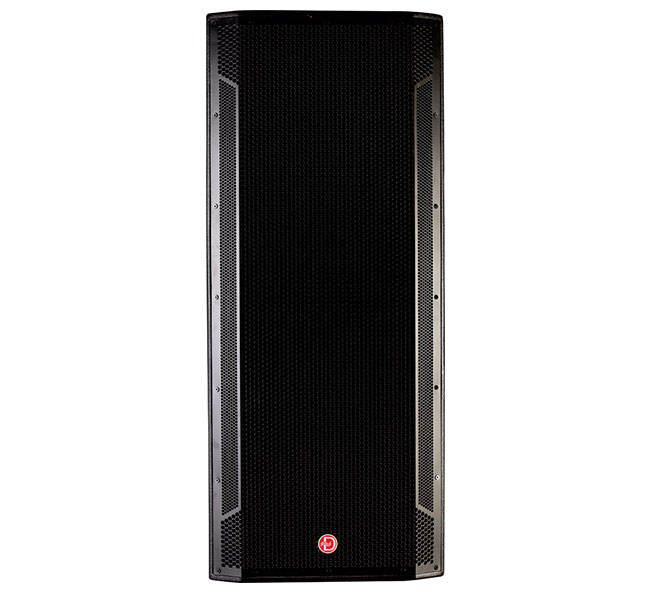

DVX-225

Portable and installed PA loudspeakers used in applications including sound reinforcement in Houses of Worship, Events, Clubs, Rehearsal Halls and Ballrooms etc. The DVX Series deliver extraordinary performance at unmatched value.

  SPECIFICATIONS FEATURES


  Rated Power   1200W (RMS)
  Construction   18mm Multilayered Plywood
  LF Driver   2 X 15", 4" VC,
  Ferrite Magnet
  HF Driver   1 X 1.4" Exit, 3" VC,
  Ferrite Magnet
  Crossover   1.6 kHz

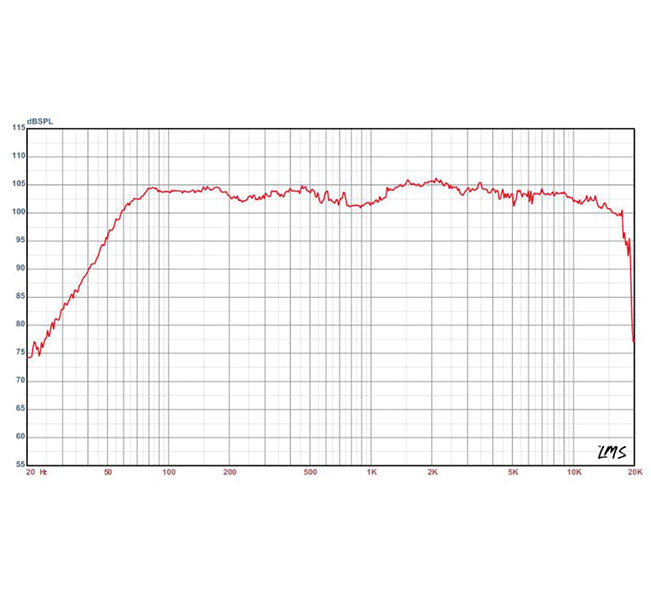

  Frequency Response (-3dB)   45Hz - 19kHz
  Maximum Peak Output   138 dB
  Rated Impedance   4Ω
  Dispersion (H X V)   60° X 40°
  Connector   2 X NL4R Speakon

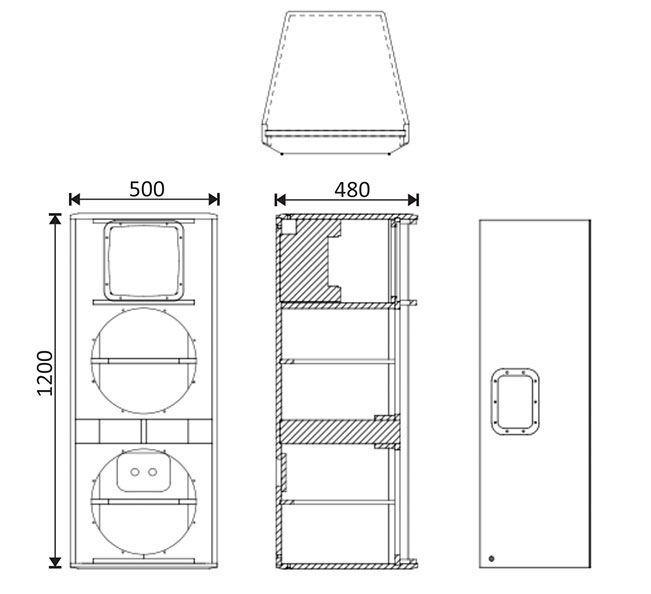

  Packaging Dimensions
  L X B X H (cms)		   59 X 58 X 130
  Net Weight   70 kgs
  Gross Weight   77 kgs
  High Output SPL & Sensitivity
  High Power Low Frequency Transducer
  Multi Purpose Cabinet Design
  Use as a Main System with or without Sub Speaker

APPLICATIONS
  Houses of Worship
  Rehearsal Halls
  Events
  Clubs
  Ballrooms
